TT126 Two-Way Tour Guide System

📡

160m – 280m Range High-penetration wireless coverage in open & partitioned venues

🔋

Up to 36h Runtime High-capacity rechargeable lithium cells for full-day guiding sessions

🎧

DSP Noise Reduction Active filter cuts ambient machinery noise for pristine speech clarity

⚡

One-Touch Auto Sync Instant multi-receiver pairing and synchronized batch group shutdown

Overview & System Highlights

Product imagesImages on this page are the manufacturer's original photos. The brand mark printed on the device is the manufacturer's own and is shown as-is in these pictures.The TT126 is a two-way tour guide system. Guides and group members can talk to each other for instant Q&A over 280 m in the open. The channel count differs by region: 25 channels on the US version and 12 on the European version, on a 902-928 MHz band in the US. Transmitters...

Key System Capabilities

One-Touch Synchronization

Easily sync dozens of receivers with the master transmitter in seconds by pressing a single button, eliminating manual channel setup.

Anti-Interference Technology

Digital frequency synthesis and multi-channel selection guarantee crystal-clear audio transmission without crosstalk even when multiple groups operate side by side.

One-Touch Mute & Bulk Shutdown

The tour guide can quickly mute transmission during private conversations or power off all connected receivers simultaneously after the event.

Ergonomic & Ultra-Lightweight

Compact receivers weigh under 50g and feature durable lanyards and comfortable D-shape earpieces designed for fatigue-free full-day wear.

Dual Audio Input Support

Supports both microphone voice input and auxiliary AUX input, allowing background music or pre-recorded audio tours to be broadcast directly.

Versatile Charging Options

Supports universal USB Type-C charging and dedicated multi-slot contact charging cases for hassle-free storage, transport, and simultaneous recharging.

Designed for Professional Environments

🏛 Guided Tours & Museums

🏭 Factory & Plant Visits

🎓 Training & Education

🌐 Simultaneous Interpretation

Package Configurations & Inclusions

Each Anytlink wireless system package is carefully assembled with all necessary accessories ready for immediate out-of-the-box operation.

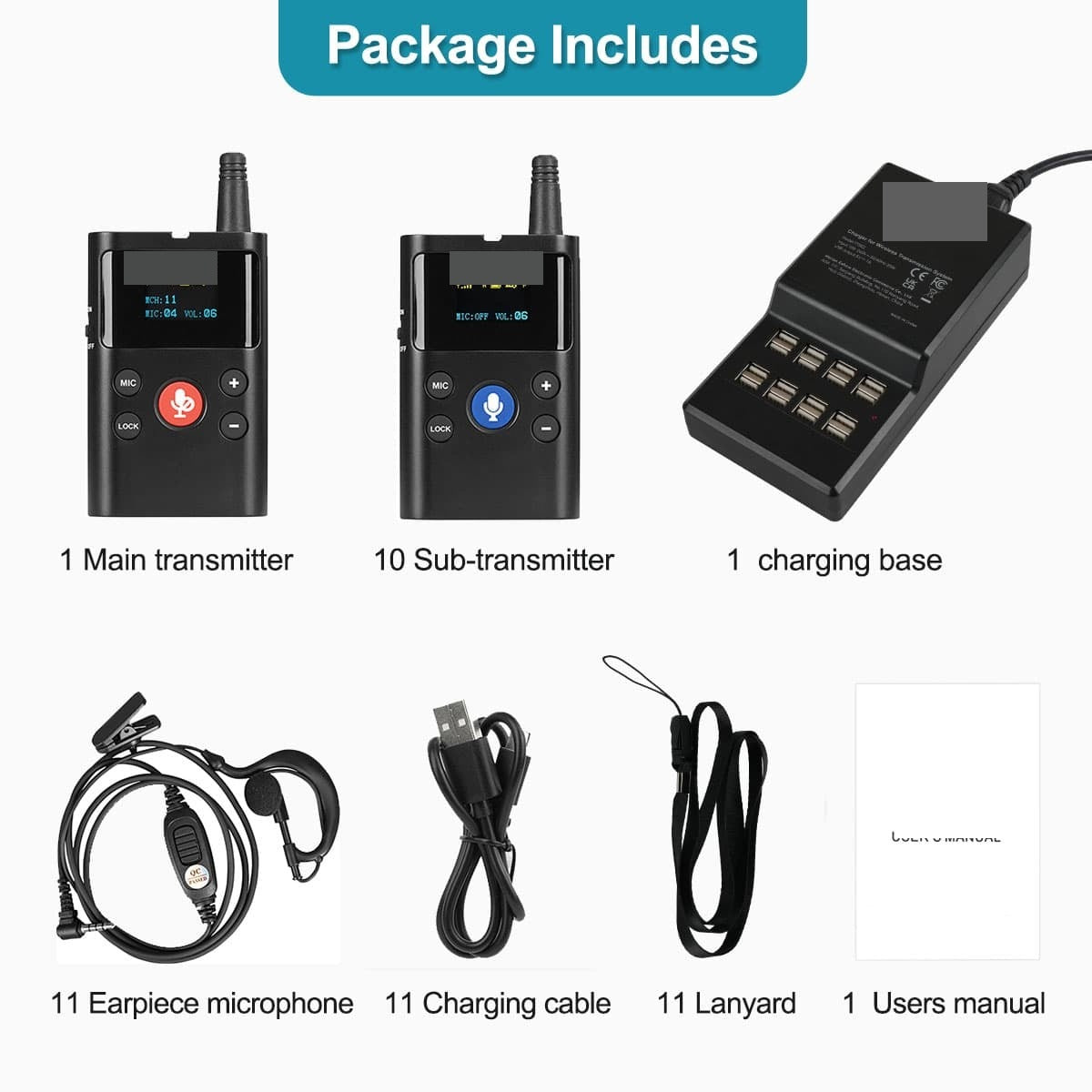

What's Typically Included

✓ Wireless Master Transmitter(s) with Antenna

✓ Compact Wireless Listener Receivers

✓ Professional Lavalier & Headset Microphones

✓ Ergonomic D-Shape Earphones (Left & Right Ear Universal)

✓ Multi-Slot Contact Charging Base or Aluminum Flight Case

✓ Quick Charging USB Cables & Adjustable Neck Lanyards

Available Kit Options Summary

Package Name	SKU	Price
US version - KIT1: 1 main transmitter + 10 sub-transmitters + 1 charging base	TT126-01	$712.49
US version - KIT2: 1 main transmitter + 15 sub-transmitters + 1 charging base	TT126-02	$1,044.99
US version - KIT3: 1 main transmitter + 20 sub-transmitters + 1 charging case	TT126-03	$1,519.99
US version - KIT4: 2 main transmitter + 22 sub-transmitters + 1 charging case	TT126-04	$1,757.49
US version - KIT5: 3 main transmitter + 42 sub-transmitters + 1 charging case	TT126-05	$3,134.99
European version - KIT1: 1 main transmitter + 10 sub-transmitters + 1 charging base	TT126-06	$712.49
European version - KIT2: 1 main transmitter + 15 sub-transmitters + 1 charging base	TT126-07	$1,044.99
European version - KIT3: 1 main transmitter + 20 sub-transmitters + 1 charging case	TT126-08	$1,519.99
European version - KIT4: 2 main transmitter + 22 sub-transmitters + 1 charging case	TT126-09	$1,757.49
European version - KIT5: 3 main transmitter + 42 sub-transmitters + 1 charging case	TT126-10	$3,134.99

Technical Specifications

Detailed hardware and engineering specifications for the TT126 Two-Way Tour Guide System.

Product Model / SKU	TT126-01
Product Category	Tour guide systems
Operating Range	160 m / 524 ft – 280 m / 918 ft (Line-of-sight in open area)
Frequency Channels	Up to 49 Selectable Channels (Non-interfering)
Transmitter Battery Runtime	Approx. 20 Hours continuous transmission
Receiver Battery Runtime	Approx. 36 Hours continuous listening
Charging Time	Approx. 3–4 Hours from empty to full
Charging Interface	USB Type-C & Integrated Multi-Pin Contact Dock
Audio Frequency Response	50 Hz – 18 kHz with DSP Noise Reduction
Audio Input / Output	3.5mm Mic & AUX Line In / 3.5mm Headphone Jack
Device Weight	Transmitter ~140g / Receiver ~49g (Ultra-portable)
Operating Temperature	-10°C to +50°C (14°F to 122°F)

Key Specifications

Working range: 280 m / 918 ft

Channels: 25 selectable channels

Battery runtime: Approx. 10 h

Charging: USB

Weight: 180–190 g per unit

Auto pairing: ✓

One-touch mute: ✓

Volume adjustment: 10 levels

Mic gain: 1–7 adjustable

Frequently Asked Questions

Find answers to common operational and setup questions regarding our wireless guide systems.

How do I choose the right package kit for my group size? ▾

Calculate the number of tour guides speaking simultaneously (number of transmitters) and the maximum expected attendees (number of receivers). For example, 1 guide with 15–30 guests works best with KIT 1 or KIT 6. If you frequently travel or manage over 30 guests, choose a kit equipped with an aluminum charging case for convenient bulk charging and secure transport.

Can multiple tour groups operate at the same venue without frequency crosstalk? ▾

Yes. With up to 49 independent selectable channels and digital PLL frequency synthesis, multiple guides can lead different groups in the same room or exhibition hall without any signal crossover. Simply assign each group to a unique channel number.

How does the one-touch pairing and bulk shutdown feature work? ▾

Turn on all receivers and the transmitter, press and hold the pairing button on the transmitter for 3 seconds, and all nearby receivers will automatically tune to the same channel. At the end of your tour, hold the shutdown button on the master transmitter to switch off all paired receivers simultaneously.

Can I add more receivers or transmitters later as our team expands? ▾

Absolutely. There is no limit to the number of receivers that can listen to a single transmitter on the same channel. You can order extra receivers, earpieces, or charging docks at any time to expand your system.

What is the battery life and what are the charging options? ▾

The transmitter provides approximately 20 hours of operation, while receivers provide up to 36 hours on a single charge. Units can be recharged individually via standard USB Type-C cables or charged simultaneously in 16-slot, 32-slot, or 64-slot charging cases.

What is covered under the 2-year warranty? ▾

All Anytlink hardware transmitters, receivers, and charging cases are backed by an official 2-year manufacturer warranty covering internal component defects, charging circuitry, and battery performance under normal operational use.
